Easy-to integrate

wireless sensors

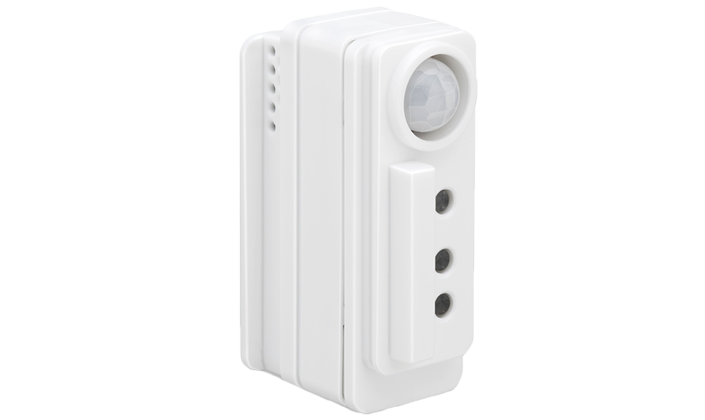

EasyAir wireless sensors save energy

The switch from conventional to LED lighting already brings considerable energy savings. Incorporating our EasyAir wireless sensors into luminaires takes the potential savings to an even higher level. Sensors enable presence detection and sunlight harvesting, which when used in combination, can generate savings of up to 50%. By providing presence and daylight sensing in a single unit, Philips EasyAir are perfect for connected lighting. They use wireless communication, reducingcabling and are suitable for renovation projects as well as new installations. Offices, meeting rooms, corridors and open-plan spaces can benefit from the energy-saving and enhanced operational efficiency of connected lighting.

Easy to design-in

Philips EasyAir wireless sensors are single-box, luminaire-mounting devices with simple two-wire connection that are easy to design-in. Powered from the Xitanium SR LED Driver, the sensors eliminate the need for extra boxes or modules in the luminaire or ceiling cavity.

Easy to configure

Configuration can be carried out before installation using SimpleSet and on-site via Philips Field Apps for Android smartphones. Communication is via Zigbee protocol, which makes it possible to have groups of sensors working as a single unit and create different scenes for specific applications, such as a presentation mode in a meeting room. The newest addition to the range is the EasyAir Advanced Grouping SNS200 group dimming sensor.

EasyAir SNS200 for office

The EasyAir SNS200 combines occupancy sensing, daylight harvesting and task tuning with advanced grouping features. It enables groups of sensors to work together and communicate with each other without additional wires between luminaires.

EasyAir SNS200 can be easily programmed via a smartphone with the Philips Field Apps, that offers immense flexibility to commission luminaires into groups wirelessly.

Simple grouping via NFC and IR with the Philips Field Apps
Occupancy sharing (zone with motion goes to full task level while sub-zones are maintained at background light level)
Scene setting (e.g, create presentation mode for a conference room: set light level low near the screen while keeping higher level in the back of the room)

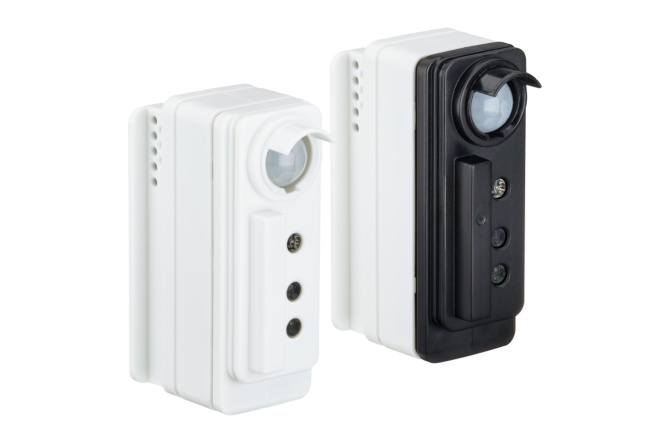

EasyAir SNS210 MC

Philips EasyAir SNS210 MC in combination with a user-friendly and intuitive app is an ideal solution for per-luminaire control of a lighting installation. This next generation sensor works with Bluetooth Low Energy technology, owing to its widespread availability in current smartphone era. The intuitive app makes configuration and commissioning during and after installation fast and easy. The result is a cost effective and easy to design-in solution ideal for energy savings.

Simple commissioning and configuration via BLE with Philips MasterConnect app (Philips field app MC): available on iOS and Android platforms
Occupancy sharing and granular dimming (zone with motion goes to full task level while sub-zones are maintained at background light level)
Scene setting over group or zone level (e.g, create presentation mode for a conference room: set light level low near the screen while keeping higher level in the back of the room)
Daylight dependent dimming

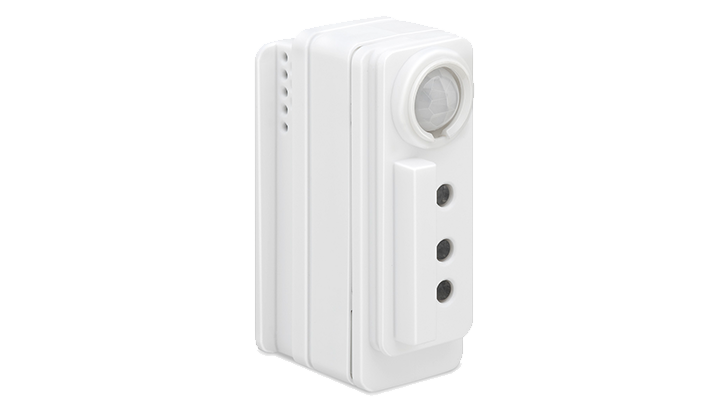

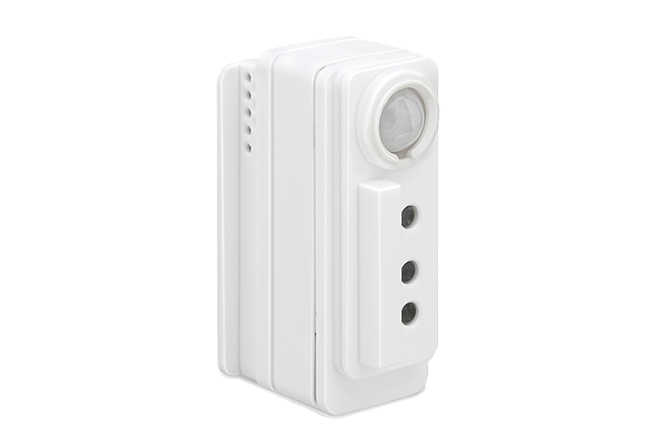

EasyAir SNS300 for office

The new sensor EasyAir SNS300 is a gateway-ready product to enable advanced applications such as scheduling or energy monitoring and ideally suited for offices, hospitals or schools.

This sensor is aimed towards per luminaire control, key features include:

The sensor has combined occupancy sensing and daylight harvesting, is easy-to-integrate: “Single box” device, 2-wire low-voltage connection to Xitanium SR Drivers
Simple design in, same form factor as EasyAir SNS200
Designed through Zigbee 3.0 specification and qualified to work with gateways from partner companies
The software (apps/dashboard) and switches for setup configuration and control are available from the gateway partner

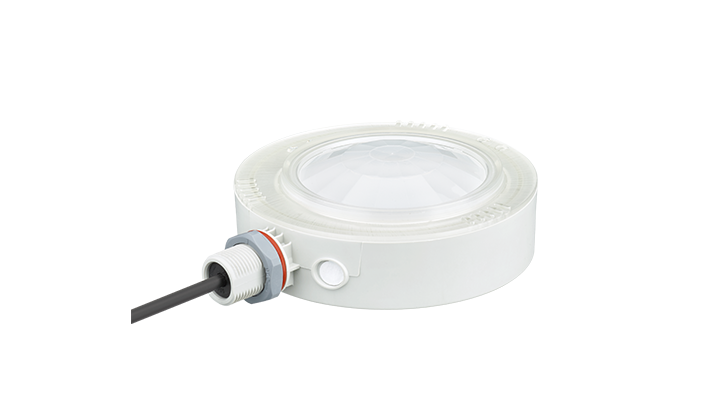

EasyAir SNH200 for high bay

The EasyAir SNH200 offers intelligent wireless lighting control, for warehouse (and similar) applications. It provides occupancy detection and daylight sensing for heights up to 16 meters.

EasyAir SNH200 can be easily programmed via a smartphone with the Philips Field Apps, that offers immense flexibility to commission luminaires into groups and further divided in zones wirelessly.

5m-16m mounting height
Simple grouping via NFC and IR with the Philips Field Apps
Zoning and occupancy sharing (zone with motion goes to full task level while sub-zones are maintained at background light level)

Product overview

Xitanium SR drivers

The Xitanium SR drivers are ideally suited for use with EasyAir or other SR Certified components to build connected lighting solutions with integrated sensor power supply, power metering and diagnostics.

EasyAir SNS200

EasyAir Advanced Grouping SNS200 has onboard Zigbee and infrared communication to enable Advanced Grouping behavior in offices. It offers a perfect solution for applications where multiple luminaires need to be grouped together to respond to motion and daylight changes.

EasyAir SNS300

EasyAir SNS300 supports full suite of advanced lighting control functions, and incorporates motion and daylight sensing in one component. It works with ZigBee 3.0 gateway from partner companies. It is compatible with the full portfolio of Xitanium linear SR drivers.

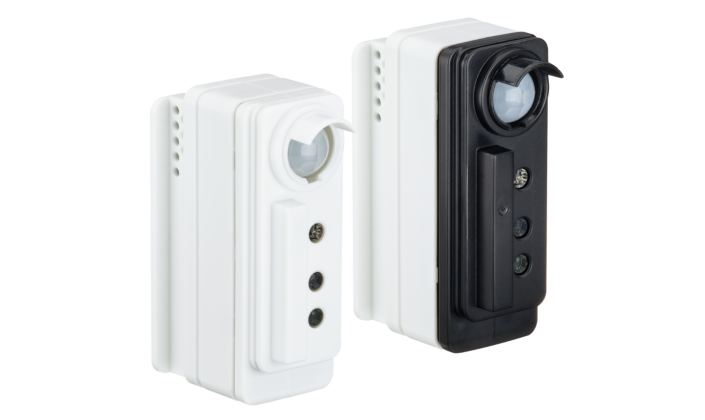

EasyAir SNS210 MC

With EasyAir SNS210 MC, a standalone lighting system can be set up in a fast and easy way using our app working with BlueTooth communication. EasyAir SNS210 MC features occupancy and daylight dependent lighting control, grouping, scene setting and zoning. It is scalable for operation with ZigBee 3.0 gateways from partner companies.

EasyAir SNH200

SNH200 extends the EasyAir portfolio to cover the industrial and high-bay applications. It supports full suite of advanced lighting control functions like SNS200, plus it also enables users to provision zones within a group. Configuration is supported via Philips Field Apps. Compatible with the full portfolio of Xitanium SR drivers.

View all datasheets on the Technical Downloads site

Field configuration with Philips Field Apps

The sensors are easily configured in the field using Philips Field Apps. Occupancy and daylight harvesting parameters are easily set with a user-friendly Android smartphone app. The app is used to configure sensor parameters via infrared and NFC, commission groups of sensors, and read-out energy data and number of burning hours. In the factory and warehouse, the drivers can also be wirelessly configured using MultiOne and SimpleSet® technology.

Download your Android app here

The Philips Field Apps for Android devices

Download the list of recommended phones here

Download the user manual here

The SR Certified program

If you are looking for connected lighting functionality beyond the basic capabilities of our components, the place to start is our SR Certified Partner program. This growing list covers building management systems, city management systems, and sensor and control manufacturers that are certified to work with Philips Xitanium SR LED drivers. We ensure all partners’ products and services work seamlessly with our connected lighting components. It’s a seal of approval to help you find partners to supply complementary components for your connected luminaires.

The SR Certified Partner program is a foundation for a successful partnership.

Check out our partners
